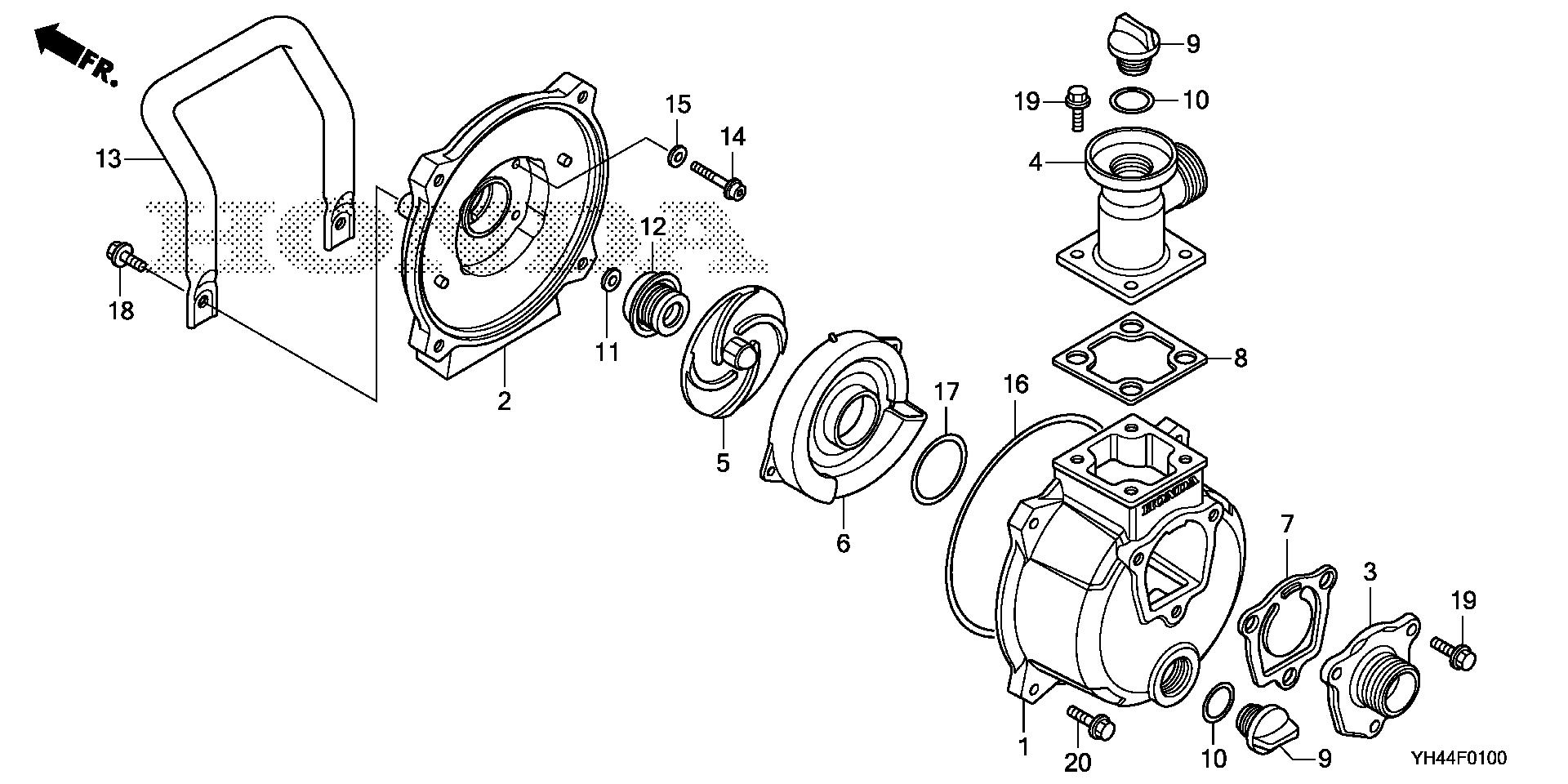

Water Pumps WX WX10 WX10T A/A WAGT-2000001-9999999 CASING (WX10T) - Bates Ace Hardware

Ref No
Part Number
Description
Serial Range
Qty
Price

Ref No
1
Part Number
78101-YH4-610
Description
CASING
Serial Range
1000001 - 9999999
Qty
Price
$35.62

Ref No
2
Part Number
78102-YH4-610
Description
COVER, CASING
Serial Range
1000001 - 9999999
Qty
Price
$24.08

Ref No
3
Part Number
78103-YH4-610
Description
INLET (NPT1)
Serial Range
1000001 - 9999999
Qty
Price
$8.60

Ref No
4
Part Number
78104-YH4-610
Description
OUTLET (NPT1)
Serial Range
1000001 - 9999999
Qty
Price
$15.62

Ref No
5
Part Number
78106-YH4-610
Description
IMPELLER
Serial Range
1000001 - 9999999
Qty
Price
$9.04

Ref No
6
Part Number
78107-YH4-610
Description
CASE, VOLUTE
Serial Range
1000001 - 9999999
Qty
Price
$11.54

Ref No
7
Part Number
78110-YH4-610
Description
VALVE, IN.
Serial Range
1000001 - 9999999
Qty
Price
$3.78

Ref No
8
Part Number
78114-YH4-610
Description
GASKET, OUTLET
Serial Range
1000001 - 9999999
Qty
Price
$7.74

Ref No
9
Part Number
78117-YB3-K10
Description
CAP, FILLER
Serial Range
1000001 - 9999999
Qty
Price
$11.48

Ref No
10
Part Number
91354-YH4-610
Description
O-RING (23.7X3.5)
Serial Range
1000001 - 9999999
Qty
Price
$0.40

Ref No
11
Part Number
78122-YH4-610
Description
SHIM, ADJUSTER
Serial Range
1000001 - 9999999
Qty
Price
$1.90

Ref No
12
Part Number
78130-YH4-611
Description
SEAL ASSY., MECHANICAL
Serial Range
1000001 - 9999999
Qty
Price
$19.72

Ref No
13
Part Number
78206-YH4-610
Description
HANDLE
Serial Range
1000001 - 9999999
Qty
Price
$8.30

Ref No
14
Part Number
90110-YH4-610
Description
BOLT, FLANGE SOCKET (5X35)
Serial Range
1000001 - 9999999
Qty
Price
$3.82

Ref No
15
Part Number
90452-323-000
Description
WASHER, SEALING (5MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.56

Ref No
16
Part Number
91352-YH4-610
Description
O-RING (140X3.5)
Serial Range
1000001 - 9999999
Qty
Price
$3.34

Ref No
17
Part Number
91353-YH4-610
Description
O-RING (36.5X5.7)
Serial Range
1000001 - 9999999
Qty
Price
$3.98

Ref No
18
Part Number
95701-06014-00
Description
BOLT, FLANGE (6X14)
Serial Range
1000001 - 9999999
Qty
Price
$0.92

Ref No
19
Part Number
95701-06020-00
Description
BOLT, FLANGE (6X20)
Serial Range
1000001 - 9999999
Qty
Price
$1.58

Ref No
20
Part Number
95701-06025-00
Description
BOLT, FLANGE (6X25)
Serial Range
1000001 - 9999999
Qty
Price
$1.74
