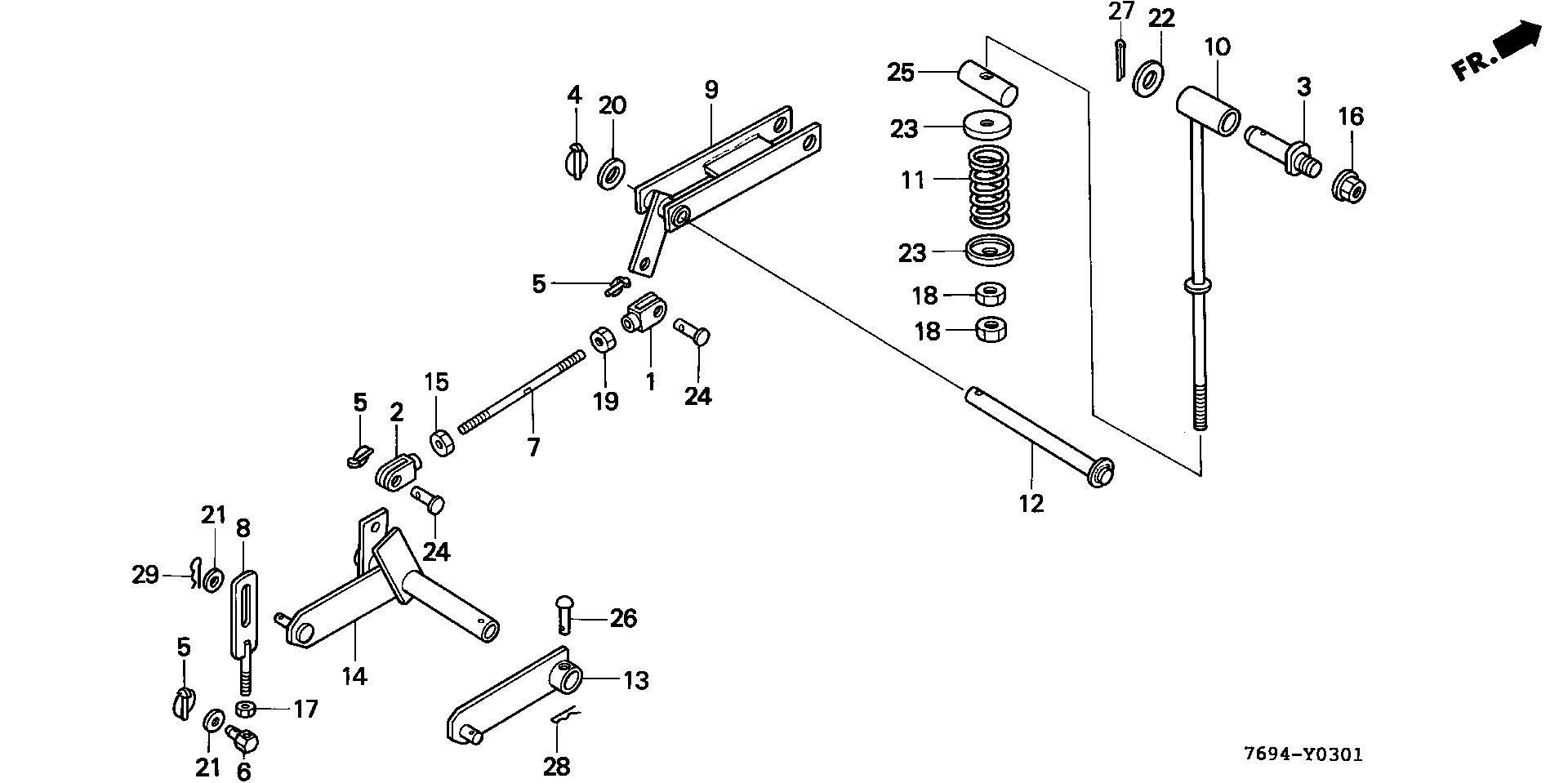

Multi Purpose Tractor MM MM52 MM52 A -1000001-9999999 MM52 CUTTER DECK LIFT ARM - Bates Ace Hardware

Ref No
Part Number
Description
Serial Range
Qty
Price

Ref No
1
Part Number
50628-769-M01
Description
ROD, R. ADJUSTING LIFT
Serial Range
1000001 - 9999999
Qty
Price
$58.78

Ref No
2
Part Number
50638-769-M01
Description
ROD, L. ADJUSTING LIFT
Serial Range
1000001 - 9999999
Qty
Price
$66.98

Ref No
3
Part Number
50914-769-M01
Description
PIN, LIFT ARM
Serial Range
1000001 - 9999999
Qty
Price
$54.72

Ref No
4
Part Number
50990-764-L31
Description
LINCHPIN ASSY. (1/4)
Serial Range
1000001 - 9999999
Qty
Price
$3.16

Ref No
5
Part Number
50990-769-M01
Description
LINCHPIN ASSY.
Serial Range
1000001 - 9999999
Qty
Price
$8.20

Ref No
6
Part Number
76185-769-M01
Description
PIN, FR. LINK ADJUSTING
Serial Range
1000001 - 9999999
Qty
Price
$49.62

Ref No
7
Part Number
76315-769-M01
Description
ROD, CUTTER DECK LIFT
Serial Range
1000001 - 9999999
Qty
Price
$41.32

Ref No
8
Part Number
76317-769-M01
Description
PLATE, CUTTER DECK LIFT (NOT AVAILABLE)
Serial Range
1000001 - 9999999

Ref No
9
Part Number
76320-769-M01
Description
LINK, CUTTER DECK LIFT
Serial Range
1000001 - 9999999
Qty
Price
$94.30

Ref No
10
Part Number
76325-769-M01
Description
ROD, LIFT LINK
Serial Range
1000001 - 9999999
Qty
Price
$84.74

Ref No
11
Part Number
76439-769-M01
Description
SPRING, LIFT DAMPER (NOT AVAILABLE)
Serial Range
1000001 - 9999999

Ref No
12
Part Number
76454-769-M01
Description
SHAFT, LIFT LINK
Serial Range
1000001 - 9999999
Qty
Price
$111.14

Ref No
13
Part Number
76670-769-M01
Description
ARM, R. LIFT
Serial Range
1000001 - 9999999
Qty
Price
$153.88

Ref No
14
Part Number
76680-769-M01
Description
ARM, L. LIFT
Serial Range
1000001 - 9999999
Qty
Price
$237.78

Ref No
15
Part Number
90301-769-M01
Description
NUT, HEX. (0.625 NF PLATED)
Serial Range
1000001 - 9999999
Qty
Price
$1.46

Ref No
16
Part Number
90309-764-L31
Description
NUT (5/8 NC HEX. LOCK)
Serial Range
1000001 - 9999999
Qty
Price
$1.32

Ref No
17
Part Number
90307-769-M01
Description
NUT (1/2 NC JAM)
Serial Range
1000001 - 9999999
Qty
Price
$0.30

Ref No
18
Part Number
90308-769-M01
Description
NUT (5/8 NC HEX.)
Serial Range
1000001 - 9999999
Qty
Price
$0.66

Ref No
19
Part Number
90309-769-M01
Description
NUT, HEX. (0.625 NF RH PLATED)
Serial Range
1000001 - 9999999
Qty
Price
$0.42

Ref No
20
Part Number
90511-769-M01
Description
WASHER, SAE FLAT (7/8) (NOT AVAILABLE)
Serial Range
1000001 - 9999999
Qty
Price
$0.30

Ref No
21
Part Number
90512-769-M01
Description
WASHER, STD SAE (5/8)
Serial Range
1000001 - 9999999
Qty
Price
$1.46

Ref No
22
Part Number
90513-769-M01
Description
WASHER (3/4X1-3/16X10GA)
Serial Range
1000001 - 9999999
Qty
Price
$1.00

Ref No
23
Part Number
90516-769-M01
Description
WASHER (16MM)
Serial Range
1000001 - 9999999
Qty
Price
$5.72

Ref No
24
Part Number
90752-769-M01
Description
PIN, FR. LINK
Serial Range
1000001 - 9999999
Qty
Price
$26.70

Ref No
25
Part Number
90754-769-M01
Description
PIN, DAMPER SPRING (NOT AVAILABLE)
Serial Range
1000001 - 9999999

Ref No
26
Part Number
90755-769-M01
Description
PIN, LIFT ARM
Serial Range
1000001 - 9999999
Qty
Price
$3.90

Ref No
27
Part Number
90760-769-M01
Description
PIN, SPLIT (3/32X1-1/2)
Serial Range
1000001 - 9999999
Qty
Price
$0.08

Ref No
28
Part Number
90761-769-M01
Description
PIN, SAFETY (3/32)
Serial Range
1000001 - 9999999
Qty
Price
$1.88

Ref No
29
Part Number
94252-16100
Description
PIN, LOCK (16MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.08
