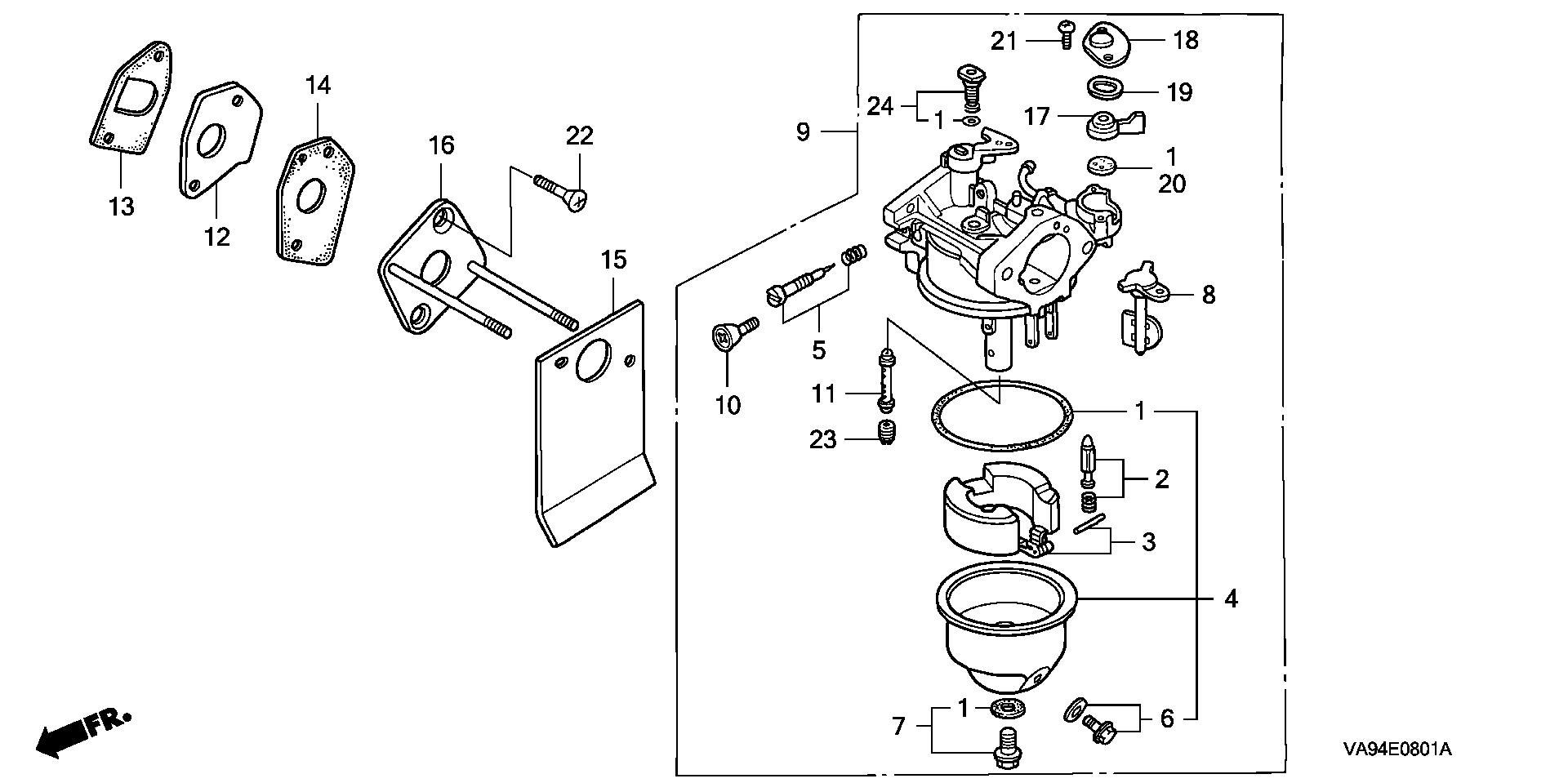

Lawn Mowers HR HR173 HR173 PDA MA2R-1000001-6000000 HR173 CARBURETOR - Bates Ace Hardware

Ref No
Part Number
Description
Serial Range
Qty
Price

Ref No
1
Part Number
16010-ZG1-015
Description
GASKET SET
Serial Range
1000001 - 9999999
Qty
Price
$14.02

Ref No
2
Part Number
16011-ZE0-005
Description
VALVE SET, FLOAT (SEAT NOT INCLUDED)
Serial Range
1000001 - 9999999
Qty
Price
$22.02

Ref No
3
Part Number
16013-ZG0-811
Description
FLOAT SET
Serial Range
1000001 - 9999999
Qty
Price
$20.78

Ref No
4
Part Number
16015-ZG0-811
Description
CHAMBER SET, FLOAT
Serial Range
1000001 - 9999999
Qty
Price
$30.56

Ref No
5
Part Number
16016-ZE0-005
Description
SCREW SET, PILOT
Serial Range
1000001 - 9999999
Qty
Price
$11.34

Ref No
6
Part Number
16024-ZE1-811
Description
SCREW SET, DRAIN
Serial Range
1000001 - 9999999
Qty
Price
$7.96

Ref No
7
Part Number
16028-ZW6-611
Description
SCREW SET
Serial Range
1000001 - 9999999
Qty
Price
$11.14

Ref No
8
Part Number
16044-ZG1-751
Description
CHOKE SET
Serial Range
1000001 - 9999999
Qty
Price
$25.52

Ref No
9
Part Number
16100-ZG1-703
Description
CARBURETOR ASSY. (BF07A C)
Serial Range
1000001 - 9999999
Qty
Price
$64.93

Ref No
10
Part Number
16124-ZE0-005
Description
SCREW, THROTTLE STOP
Serial Range
1000001 - 9999999
Qty
Price
$12.20

Ref No
11
Part Number
16166-ZG1-701
Description
NOZZLE, MAIN
Serial Range
1000001 - 9999999
Qty
Price
$21.68

Ref No
12
Part Number
16211-ZG0-020
Description
INSULATOR, CARBURETOR
Serial Range
1000001 - 9999999
Qty
Price
$8.32

Ref No
13
Part Number
16212-ZG0-800
Description
GASKET, INSULATOR
Serial Range
1000001 - 9999999
Qty
Price
$1.98

Ref No
14
Part Number
16221-ZG0-801
Description
GASKET, CARBURETOR
Serial Range
1000001 - 9999999
Qty
Price
$1.98

Ref No
15
Part Number
16221-ZG1-J31
Description
GASKET, CARBURETOR
Serial Range
1000001 - 9999999
Qty
Price
$8.40

Ref No
16
Part Number
16225-ZG1-750
Description
PLATE, CARBURETOR JOINT (NOT AVAILABLE)
Serial Range
1000001 - 9999999
Qty
Price
$14.90

Ref No
17
Part Number
16953-ZG1-405
Description
LEVER, VALVE
Serial Range
1000001 - 9999999
Qty
Price
$6.52

Ref No
17
Part Number
16953-ZG1-752
Description
LEVER, VALVE
Serial Range
2633225 - 9999999
Qty
Price
$7.12

Ref No
18
Part Number
16954-ZE1-812
Description
PLATE, LEVER SETTING
Serial Range
2633225 - 9999999
Qty
Price
$2.94

Ref No
19
Part Number
16956-ZE1-811
Description
SPRING, PETCOCK LEVER
Serial Range
1000001 - 9999999
Qty
Price
$2.86

Ref No
20
Part Number
16957-ZE1-812
Description
GASKET, PETCOCK
Serial Range
1000001 - 9999999
Qty
Price
$3.20

Ref No
21
Part Number
93500-03006-0H
Description
SCREW, PAN (3X6)
Serial Range
2633225 - 9999999
Qty
Price
$0.78

Ref No
21
Part Number
93500-03008-1G
Description
SCREW, PAN (3X8)
Serial Range
1000001 - 9999999

Ref No
22
Part Number
93600-05020-0H
Description
SCREW, FLAT (3X6)
Serial Range
2633225 - 9999999
Qty
Price
$0.60

Ref No
23
Part Number
99101-187-0580
Description
JET, MAIN (#58)
Serial Range
1000001 - 9999999
Qty
Price
$8.38

Ref No
23
Part Number
99101-187-0600
Description
JET, MAIN (#60)
Serial Range
1000001 - 9999999
Qty
Price
$6.64

Ref No
23
Part Number
99101-ZG0-0550
Description
JET, MAIN (#55)
Serial Range
1000001 - 9999999
Qty
Price
$8.00

Ref No
24
Part Number
99204-ZE0-0350
Description
JET SET, PILOT (#35)
Serial Range
1000001 - 9999999
Qty
Price
$17.40
