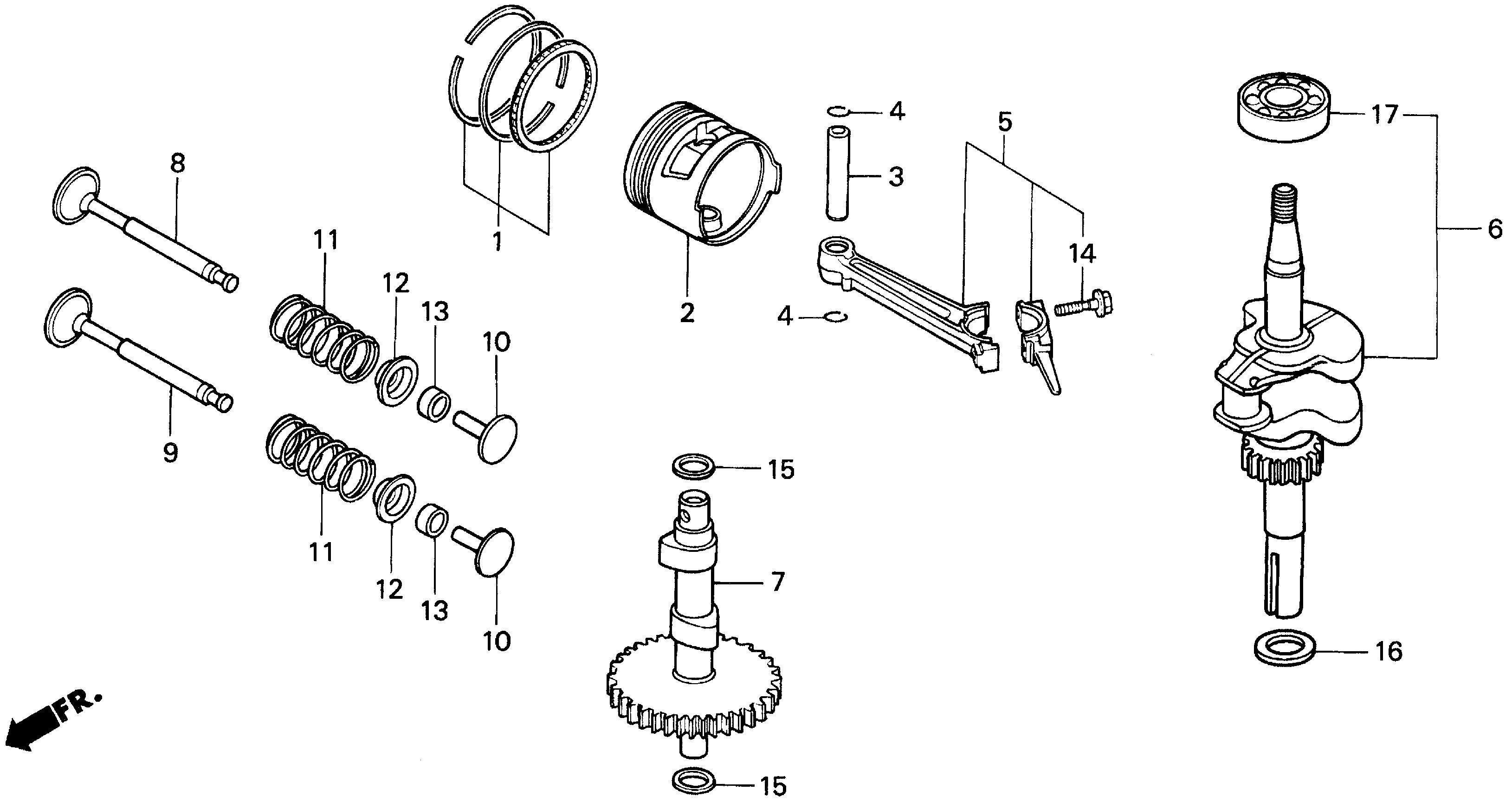

Lawn Mowers HR HR173 HR173 PDA MA2R-1000001-6000000 HR173 PISTON - Bates Ace Hardware

Ref No
Part Number
Description
Serial Range
Qty
Price

Ref No
1
Part Number
13010-ZG1-004
Description
RING SET, PISTON (STD)
Serial Range
1000001 - 9999999
Qty
Price
$26.86

Ref No
1
Part Number
13011-ZG1-003
Description
RING SET, PISTON (OVER SIZE) (0.25)
Serial Range
1000001 - 9999999

Ref No
1
Part Number
13011-ZG1-004
Description
RING SET, PISTON (OVER SIZE) (0.25) (NOT AVAILABLE)
Serial Range
1000001 - 9999999
Qty
Price
$26.52

Ref No
1
Part Number
13012-ZG1-003
Description
RING SET, PISTON (OVER SIZE) (0.50)
Serial Range
1000001 - 9999999
Qty
Price
$26.52

Ref No
1
Part Number
13012-ZG1-004
Description
RING SET, PISTON (OVER SIZE) (0.50) (NOT AVAILABLE)
Serial Range
1000001 - 9999999
Qty
Price
$27.60

Ref No
1
Part Number
13013-ZG1-003
Description
RING SET, PISTON (OVER SIZE) (0.75) (NOT AVAILABLE)
Serial Range
1000001 - 9999999
Qty
Price
$29.16

Ref No
1
Part Number
13013-ZG1-004
Description
RING SET, PISTON (OVER SIZE) (0.75)
Serial Range
1000001 - 9999999
Qty
Price
$29.16

Ref No
2
Part Number
13101-ZG1-003
Description
PISTON (STD)
Serial Range
1000001 - 9999999
Qty
Price
$24.92

Ref No
2
Part Number
13102-ZG1-003
Description
PISTON (OVER SIZE) (0.25) (NOT AVAILABLE)
Serial Range
1000001 - 9999999
Qty
Price
$27.20

Ref No
2
Part Number
13103-ZG1-003
Description
PISTON (OVER SIZE) (0.50) (NOT AVAILABLE)
Serial Range
1000001 - 9999999
Qty
Price
$29.16

Ref No
2
Part Number
13104-ZG1-003
Description
PISTON (OVER SIZE) (0.75)
Serial Range
1000001 - 9999999
Qty
Price
$30.46

Ref No
3
Part Number
13111-892-000
Description
PIN, PISTON
Serial Range
1000001 - 9999999
Qty
Price
$5.06

Ref No
4
Part Number
13115-147-000
Description
CLIP, PISTON PIN (10MM)
Serial Range
1000001 - 9999999
Qty
Price
$2.08

Ref No
5
Part Number
13200-ZG0-000
Description
ROD ASSY., CONNECTING (STD)
Serial Range
1000001 - 9999999
Qty
Price
$53.76

Ref No
5
Part Number
13200-ZG0-305
Description
ROD ASSY., CONNECTING (0.25 LOWER SIZE) (NOT AVAILABLE)
Serial Range
1000001 - 9999999
Qty
Price
$43.68

Ref No
6
Part Number
13310-ZG1-751
Description
CRANKSHAFT
Serial Range
1000001 - 9999999
Qty
Price
$150.38

Ref No
7
Part Number
14111-ZC0-000
Description
CAMSHAFT
Serial Range
1000001 - 9999999
Qty
Price
$45.80

Ref No
7
Part Number
14111-ZG0-000
Description
CAMSHAFT
Serial Range
1000001 - 2485630
Qty
Price
$45.80

Ref No
8
Part Number
14711-ZG1-000
Description
VALVE, IN.
Serial Range
1000001 - 9999999
Qty
Price
$23.56

Ref No
8
Part Number
14711-ZG1-H10
Description
VALVE, IN.
Serial Range
1000001 - 9999999
Qty
Price
$23.56

Ref No
9
Part Number
14721-ZG1-000
Description
VALVE, EX.
Serial Range
1000001 - 9999999
Qty
Price
$24.72

Ref No
10
Part Number
14732-ZA8-000
Description
LIFTER, VALVE
Serial Range
1000001 - 9999999
Qty
Price
$13.56

Ref No
11
Part Number
14751-896-000
Description
SPRING, VALVE
Serial Range
1000001 - 9999999
Qty
Price
$3.08

Ref No
12
Part Number
14771-ZG0-000
Description
RETAINER, VALVE SPRING
Serial Range
1000001 - 9999999
Qty
Price
$3.74

Ref No
13
Part Number
14801-892-000
Description
ADJUSTER, TAPPET CLEARANCE (3.15)
Serial Range
1000001 - 9999999
Qty
Price
$5.42

Ref No
13
Part Number
14803-892-000
Description
ADJUSTER, TAPPET CLEARANCE (3.25)
Serial Range
1000001 - 9999999
Qty
Price
$5.42

Ref No
13
Part Number
14806-892-000
Description
ADJUSTER, TAPPET CLEARANCE (3.34)
Serial Range
1000001 - 9999999
Qty
Price
$5.42

Ref No
13
Part Number
14809-892-000
Description
ADJUSTER, TAPPET CLEARANCE (3.43)
Serial Range
1000001 - 9999999
Qty
Price
$5.42

Ref No
13
Part Number
14812-892-000
Description
ADJUSTER, TAPPET CLEARANCE (3.52)
Serial Range
1000001 - 9999999
Qty
Price
$5.42

Ref No
13
Part Number
14815-892-000
Description
ADJUSTER, TAPPET CLEARANCE (3.61)
Serial Range
1000001 - 9999999
Qty
Price
$5.42

Ref No
13
Part Number
14818-892-000
Description
ADJUSTER, TAPPET CLEARANCE (3.72)
Serial Range
1000001 - 9999999
Qty
Price
$5.42

Ref No
13
Part Number
14820-892-000
Description
ADJUSTER, TAPPET CLEARANCE (3.82)
Serial Range
1000001 - 9999999
Qty
Price
$5.42

Ref No
14
Part Number
90001-ZG0-000
Description
BOLT, CONNECTING ROD
Serial Range
1000001 - 9999999
Qty
Price
$2.56

Ref No
15
Part Number
90452-ZG0-000
Description
WASHER (12MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.74

Ref No
16
Part Number
90454-428-000
Description
WASHER, THRUST (20MM)
Serial Range
1000001 - 9999999
Qty
Price
$2.50

Ref No
17
Part Number
96100-62030-00
Description
BEARING, RADIAL BALL (6203)
Serial Range
1000001 - 9999999
Qty
Price
$8.74
